Description

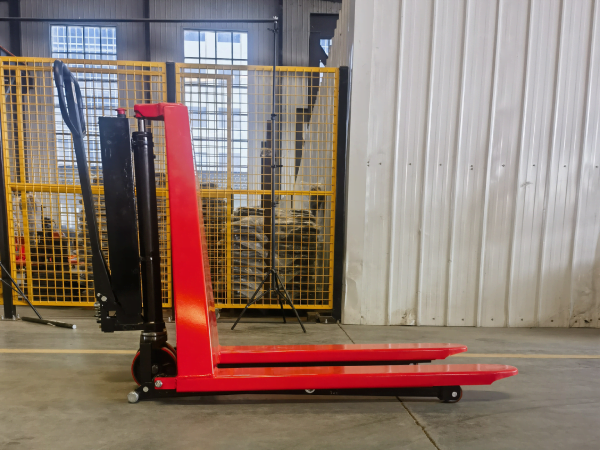

Electric high lift pallet jack is operated by hydraulic lifting. And the electric high-lift pallet truck can load up to 1500KG, with a lifting height of more than 710 mm.
The hydraulic high lift truck is specially designed for lifting all kinds of pallets, with the advantages of small size, flexible and convenient. The design of double-section cylinder makes it have the working characteristics of manual pallet truck and lifting platform at the same time.
Widely used in warehouses, workshops, workshops, garages, etc. It is equipped with DC motor hydraulic pump station, high performance battery and built-in charger.
Electric high lift pallet jack dimensions
| Model | 550 | 685 | |
| Rated Capacity | kg | 1500 | 1500 |
| Min. ground clearance of forks | mm | 80 | 85 |
| Max. Lifting Height | mm | 710 | 710 |
| Wheel | Polyurethane/Nylon | Polyurethane/Nylon | |
| Main wheel size | mm | 180*50 | 180*50 |
| Double wheel size | mm | 74*55 | 74*55 |
| Overall Height | mm | 1208 | 1208/ |
| Overall Length | mm | 1600 | 1580 |
| Fork Length | mm | 1150 | 1150 |
| Distance Across Forks | mm | 550 | 685 |
| Single fork width | mm | 160 | 160 |
| Fork thickness | mm | 55 | 55 |
| Maximum travel height with forks up | mm | 190 | 190 |
| Battery | li-ion battery | li-ion battery | |
| Battery Voltage/Capacity | V/Ah | 48/12 | 48/12 |
| Power of hoisting motor | kw | 0.8 | 0.8 |
| Lift Speed (laden/unladen) | m/s | 0.035/0.048 | 0.035/0.048 |
| Turning radius | mm | 1260 | 1260 |
| Weight | kg | 142 | 155 |
Electric Hydraulic High-lift Pallet Truck Features
1. Simple operation:
Adopt high quality hydraulic cylinder, electric lift, make the goods lifting more smooth and powerful, easy to operate, safe and fast, effectively improve work efficiency.
2. Humanized design:
One-touch button power switch, electric lift, using high-quality industrial charging plug interface, safe, durable and reliable.
3. Wide use:
Can be used as a moving truck, lifting platform, stacking workbench, applicable to a variety of places including factory workshops, logistics centers, warehouses, supermarkets.
