Description

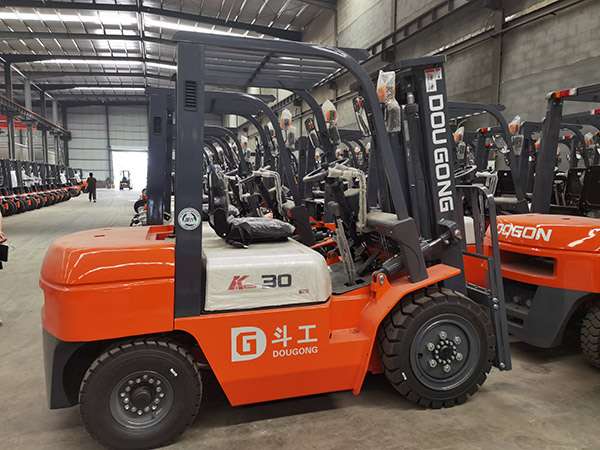

Dogon manual transmission forklift diesel 3 ton is an ideal outdoor materials handling equipment. It’s greatly improves the work efficiency with strong power and excellent performance of the manual transmission forklift truck.
Manual Transmission Forklift Description
- High pressure common rail environmental protection engine.
- Noise isolating and sealing materials reduce vibration and noise effectively.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
3 Ton Diesel Forklift Specifications
| Model | CPC30 | CPCD30 | |
| Power Type | Diesel | Diesel | |
| Rated Capacity | (kg) | 3000 | 3000 |
| Load Center | (mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type | |
| Performance | |||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 17.5/13.4 | 19.5/15.5 |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 |
| Size | |||
| Max Lifting Height(mm) | H | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2070 | 2070 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 2090 | 2090 |
| Min. Ground Clearance(mm) | H5 | 135 | 135 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 310 | 310 |
| Backrest Height(from the fork face, mm) | H13 | 1215 | 1215 |
| Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 |
| Wheel base(mm) | L4 | 1700 | 1700 |
| Front Overhang(mm) | L2 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 |
| Overall Width(mm) | W1 | 1225 | 1225 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2390 | 2390 |
| Mast Tilt | a/b | 6°/12° | 6°/12° |
| Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 |
Forklift 3 ton load chart
Product features
- 20% reduction in vibration
- 3dB noise reduction
- 45% more workspace
- operator’s field of vision increased by 20%
- 20% increase in work efficiency
- Loading capacity increased by more than 5%
- Stability increased by 5%
- Reliability increased by 40%
- Opening angle of the hood increased to 80°
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage)
- Wide view free-lift mast(three-stage)
Optional forklift engine models & specifications
Optional forklift mast dimensions
Why choose Dogon Forklift
* Free Quotes
* Fast delivery
* Available In-Stock
* Affordable Prices
* Have many years of production or foreign trade experience
* Participated in many well-known exhibitions in the industry
* Has its own R&D team
* With ISO & CE certificates, quality guaranteed
* Provide OEM and personalized customization services, etc.
About Dogon Forklift

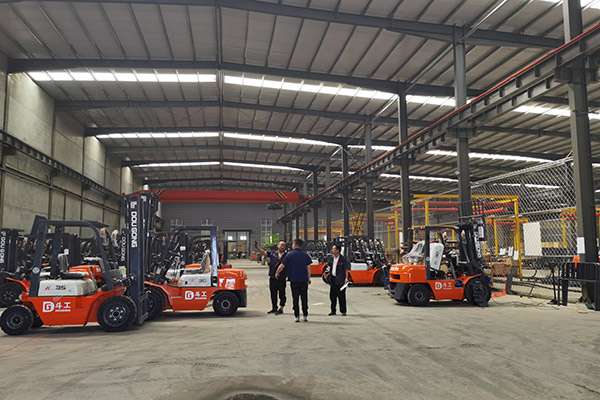

Dogon (China) Group is a dedicated forklift manufacturer and exporter in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. Our company will continuously keep product advantages with strict QC systems.
Dogon K series diesel stick shift forklift product pipeline mainly include 3ton forklift, 3.5 ton fork lift truck, 4 ton forklift, 5 ton forklift and 10 ton forklift. Dogon diesel lift truck is very popular with strong performance, comfortable operation, excellent quality, and reliable working.
Now our mainly produces diesel forklifts, electric forklifts, telescopic handler forklift, scissor lift truck, articulating boom forklift, electric pallet stacker, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc.
All the forklift trucks can be supplied with necessary attachments for different material handling applications. If you are interested in our lift trucks, feel free to contact our team, get more details and a free quotation.
