Description
1 ton Electric Forklift Specifications
| Rated Capacity | kg | 1000 | |
| Overall Length | Without fork |
mm | 1975 |
| With fork | 3090 | ||
| Overall Width | With wheels | 1030 | |
| With frame | 955 | ||
| Overall Height | Without overhead guard | 2180 | |
| Overhead guard | 2050 | ||
| With Lifting Height | 3880 | ||
| Wheel base | 1250 | ||
| Front Overhang | 360 | ||
| Front track | 880 | ||
| Rear track | 860 | ||
| Min. Ground Clearance | Lower of gantry | 105 | |
| Middle of frame | 150 | ||
| Max. Lifting Height | 3000 | ||
| Gantry Tilt(front/rear) | 6/12 | ||
| Overall Weight | kg | 1700 | |
| Lifting Speed(unladen) | mm/s | 117 | |
| Min. Turning Radius | 2095 | ||
| Max Traveling Speeds(unladen) | km/h | 11 | |
| Max Traveling Speeds(laden) | 8 | ||
| Max Gradeability(laden) | % | 15 | |
| Load centre distance | mm | 500 | |
| Front Wheel | / | 500-8 | |
| Rear Wheel | / | 400-8 | |
| Lifting motor power | KW | DC 2.2 | |
| Drive motor power | KW | AC 3 | |
| Turning mode | / | hydraulic power assisted | |
| Charger input voltage | V | 220 | |
| Charging time | h | 8 | |
| Battery capacity | ah | 70 | |
| Rated voltage | V | 60 | |
Product Details
- Controls: Designed to fit and easy to operate
- Specialised axles: enlarged and reinforced, with sufficient power and high load capacity.
- Adjustable seats: driving comfort
- Brake turn signals: for safe operation
- Thickened chain: strong pulling force, smooth lifting and lowering
- Tyres: wear-resistant and durable, with a long service life
- Working light: high brightness, more convenient for night work
Product Advantages
- High pressure common rail environmental protection engine.
- High-quality manganese steel, strong toughness and high safety factor
- Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- Integrated injection molding instrument panel, humanized design.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
- smooth and precise walking and lifting control, excellent speed regulation performance.
- good matching performance of motor electronic control, regenerative braking, reverse braking, slope anti-slide and other functions, safe and reliable.
Small Electric Fork lift Trucks Application

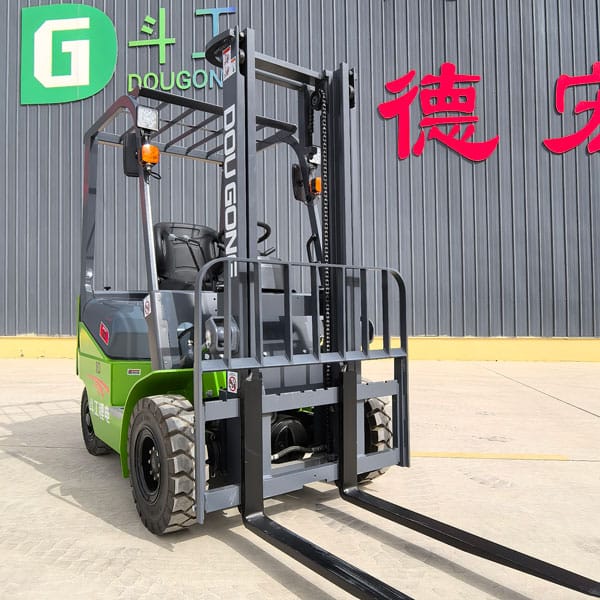

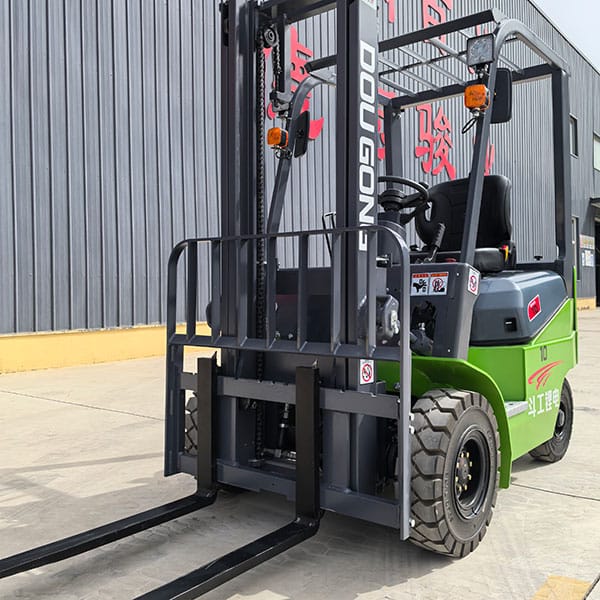

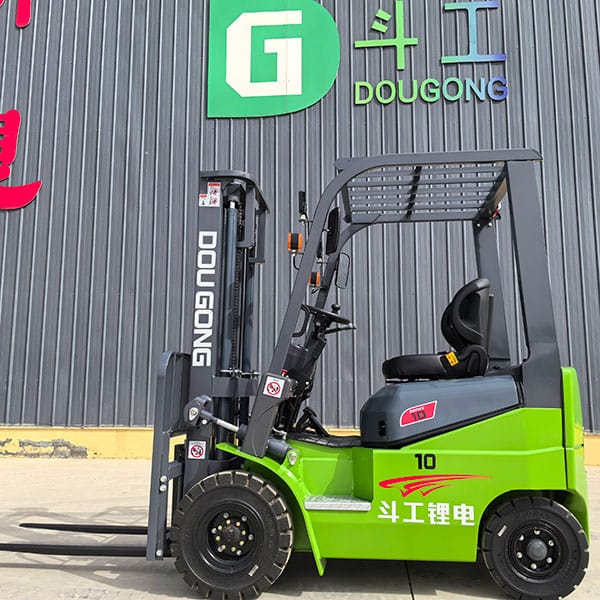

Brand new Dogon 1 ton electric forklift for sale! This 1 ton forklift is light-duty and easy to use. Dogon group produces and supplies high quality diesel & electric forklift trucks with good performance and professional service.
The electric fork lift trucks are widely used in airports, stations, factories, workshops, warehouses freight yards, ports and distribution centers.
- Cold Storage Handling
- Enterprise Warehouse
- Logistics Transportation
- Airport
- Factory Workshop
- Station
Professional After-sales Services
- Affordable Factory Prices and Fast delivery
- Professional installation guidance and operation training
- With ISO & CE certificate, quality guaranteed
- OEM, ODM and customization services
- Comes with spare parts and toolbox
About Dogon Forklift
Dogon (China) Group is a large joint venture group company, which is integrating R&D, production, marketing and service. We have the rugged and reliable lift truck equipment to help you get your job done right. Our company has more than 500 employees, including more than 100 professional technicians , and more than 50 senior and intermediate engineers.
Dogon can supply different classes of forklifts, from small electric forklift to heavy duty diesel forklift available. Now our company mainly produces diesel forklifts, electric forklifts, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc. The K series 3 ton forklift, 3.5 ton forklift and 10 ton forklift trucks for sale are popular in the market. The 1 ton, 2 ton, and 3 ton electric forklift trucks are also our hot-sale products.
Our products have been exported to more than 20 countries, including Southeast Asia, the Middle East, Africa, and Latin America, etc. The forklift costs vary depending on the type of forklift and corresponding configuration you need. If you are interested in our products or want to select a right forklift for your job, get in touch with our team to learn more details and get a free quotation today.
