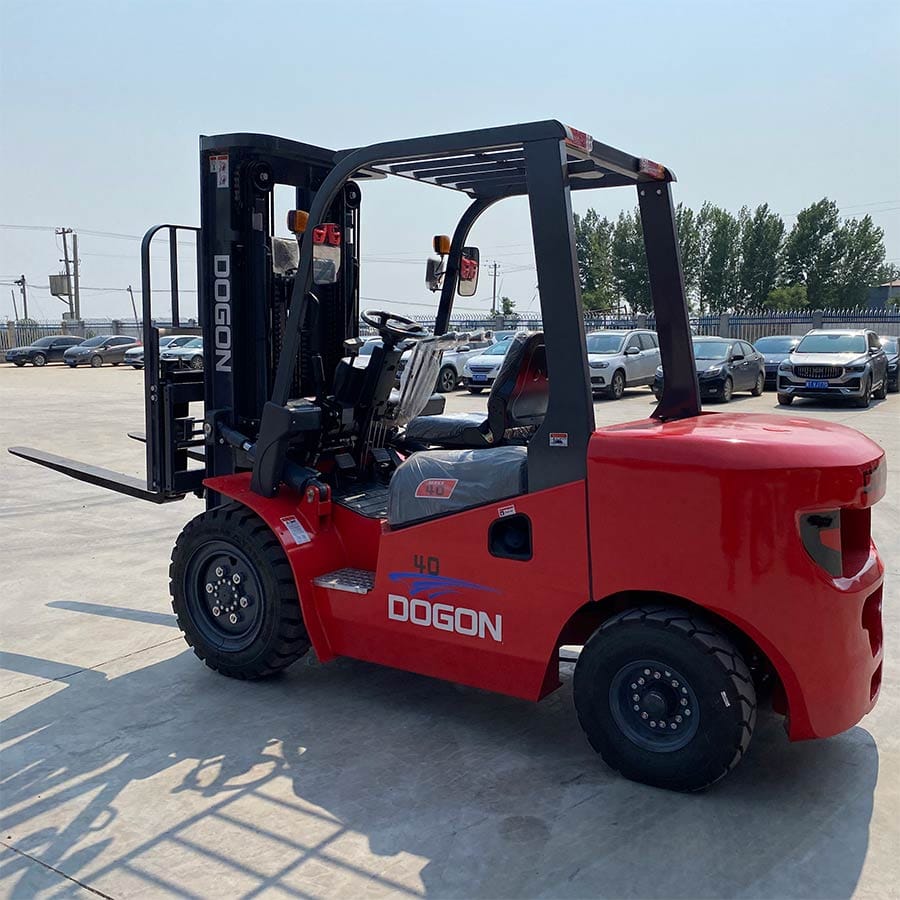

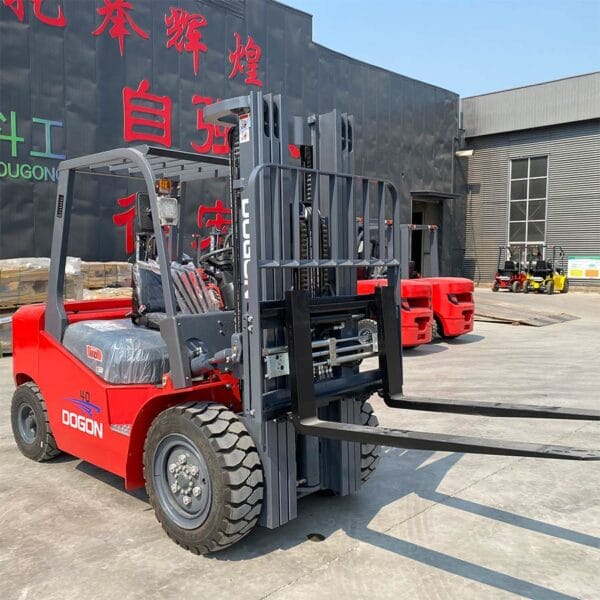

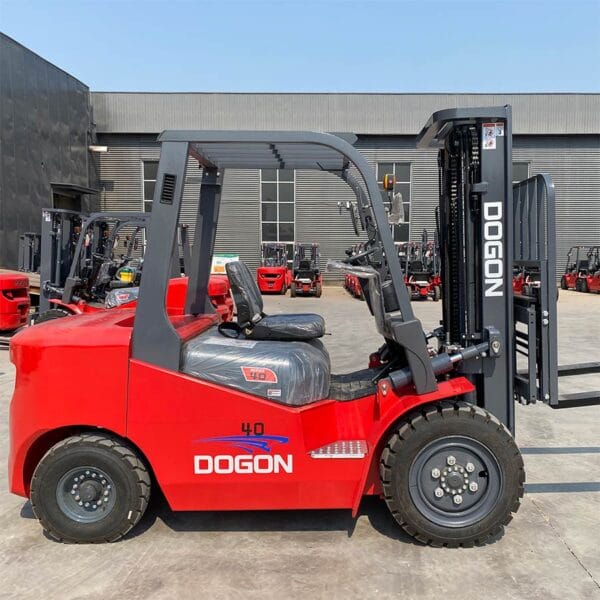

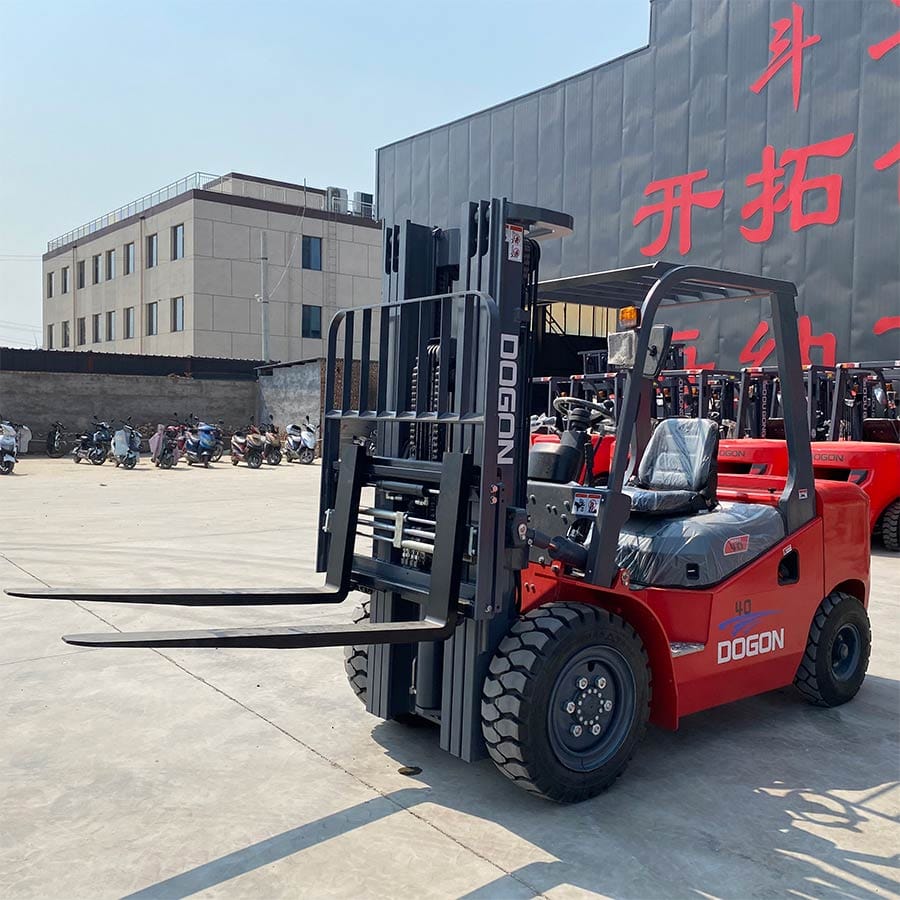

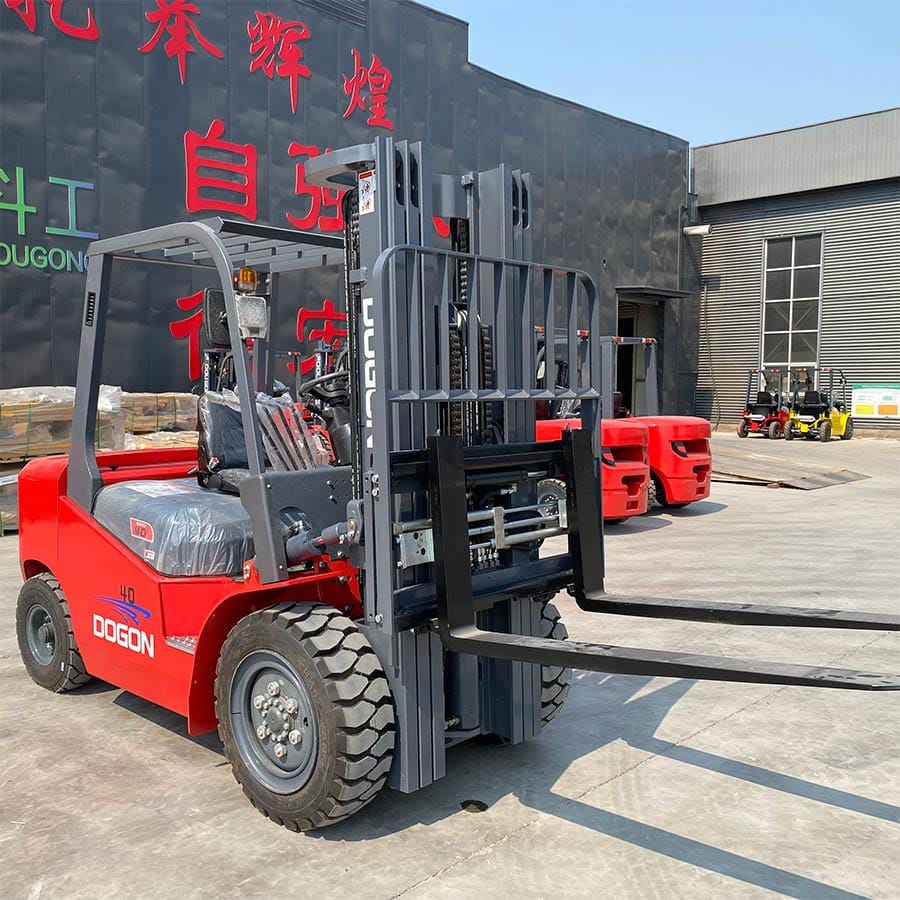

Dogon 4ton internal combustion counterbalance forklift is with high quality and strong performance. As a source manufacturer of internal combustion engine counterbalanced forklifts, we are committed to providing customers with cost-effective forklift products.
4 ton internal combustion counterbalance forklift truck dimensions
| Model | CPC40 | |
| Power type | diesel | |
| specified load | kg | 4000 |
| load center | mm | 500 |
| driving style | sit-down | |
| Size | ||
| Maximum lifting height | mm | 3000 |
| Full height of mast (forks on the ground, mast vertical) | mm | 2150 |
| Maximum fork lifting height (with shelf) | mm | 4220 |
| Free lifting height | mm | 30 |
| Overall height (overhead guard) | mm | 2103 |
| Minimum ground clearance (at mast) | mm | 148 |
| Seat to Overhead Guard(mm) | mm | 1000 |
| Traction pin height | mm | 323 |
| Shelf height (from the fork surface of the mast) | mm | 1215 |
| Overall Length(with/without fork) | mm | 4063/2843 |
| Wheelbase | mm | 1850 |
| Full width | mm | 1290 |
| Wheel base (front track/rear track) | mm | 1000/970 |
| Fork distance (outside) (max/min) | mm | 1060/250 |
| Minimum turning radius | mm | 2550 |
| Mast inclination | 6°/12° | |
| Fork size | mm | 50X125X1220 |
| total weight | kg | 4860 |
| Performance | ||
| Maximum driving speed (full load/unloaded) | km/h | 18/19 |
| Lifting speed (full load/empty load) | mm/s | 440/480 |
| Descending speed (full load/no load) | mm/s | 440/430 |
| Maximum traction (full load) | KN | 18.1/13.4 |
| Maximum gradeability (full load/no load) | % | 15/20 |
| Tire size (front/rear) | 250-15-14PR/6.50-10-10PR | |
| Battery (voltage/capacity) | 12/80 | |
| Engine Make/Model | QuanchaiV29-50V42 | |
| Engine rated power | 36.8/2500 | |
| Engine rated torque | 157/1800 | |
| Number of cylinders – bore x stroke | 4-93X105 | |
| Engine capacity | 2.85 | |
| Engine fuel tank capacity | 50 | |
| Emission Standards | CHINA IV | |
| Number oftransmission gears (front/rear type) | 1-1PowerShift, T/M 2-2Manual Shit T/M | |

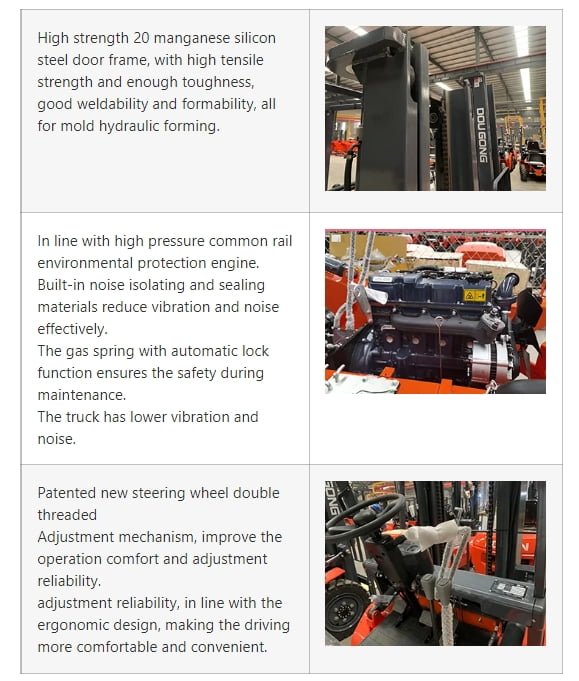

Dogon internal combustion counterbalanced truck features
Optional Forklift Attachments

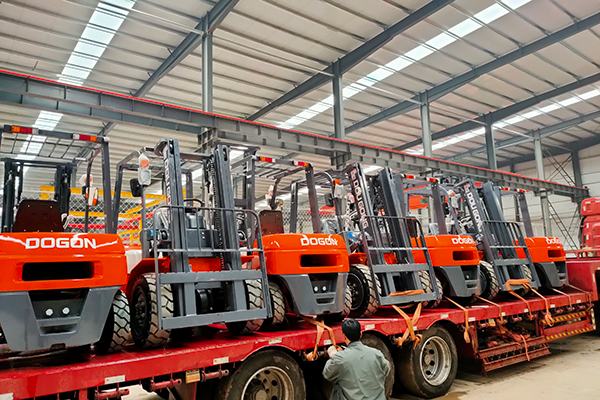

About Dogon Forklift
Dogon (China) Group is a professional material handling equipment manufacturer and exporter. Our forklift trucks are sold well in all provinces and cities in China, and exported to more than 80 countries and regions, such as the United States, Germany, France, Australia, Russia, Canada, Malaysia, Brazil, Chile and so on. We provide a full range of pre-sales consultation, in-sales training and after-sales service, as well as timely repair and maintenance services to ensure that our customers always get the best experience.

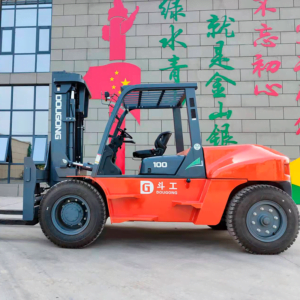

Dogon can offer a wide range of forklift trucks, such as diesel forklifts, LGP forklifts, and electric forklifts up to 10 tons, as well as scissor lift, electric pallet stacker, telehandler forklift, wheel loaders and more.
