Description

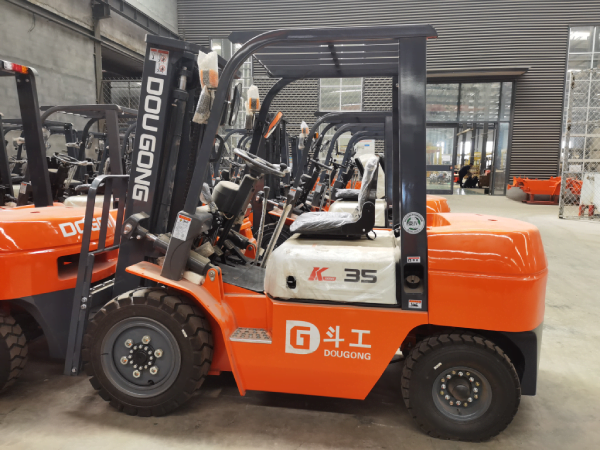

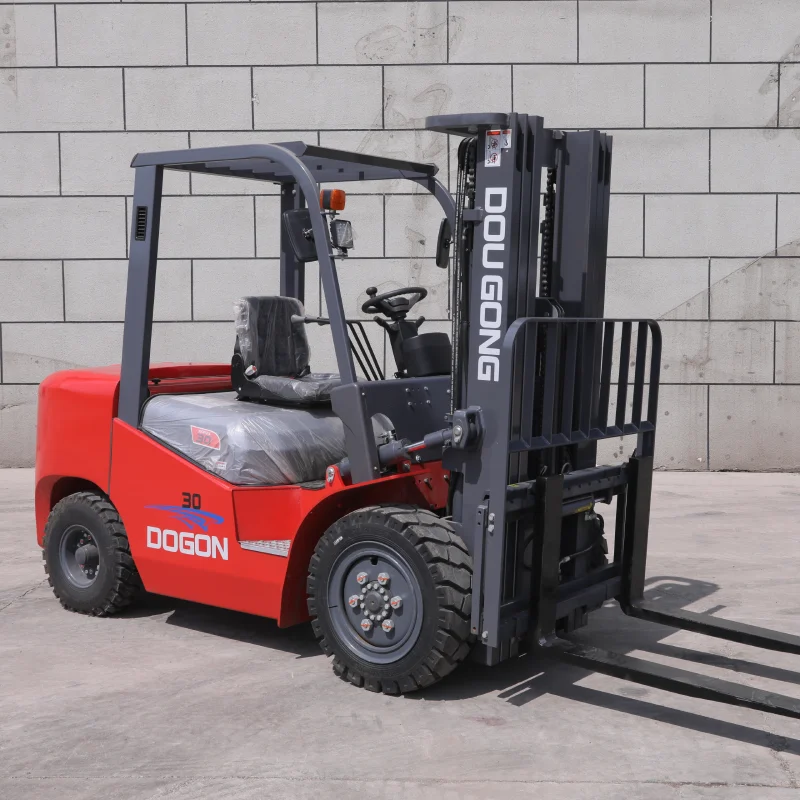

Dogon supplies diesel counterbalanced 4-wheel sit down forklift with 3t, 3.5t, 4t capacity for sale. K series diesel forklifts are our popular product pipeline with ISO&CE certificates.
Sit-down diesel forklift dimensions
| Model | CPC30/CPCD30 | CPC35/CPCD35 | CPC40/CPCD40 | |
| Power Type | Diesel | Diesel | Diesel | |
| Rated Capacity | (kg) | 3000 | 3500 | 4000 |
| Load Center | (mm) | 500 | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type | Sit-on Type | |
| Size | ||||
| Max Lifting Height(mm) | H | 3000 | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2070 | 2070 | 2150 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 2090 | 2090 | 3003 |
| Min. Ground Clearance(mm) | H5 | 135 | 135 | 148 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 310 | 310 | 323 |
| Backrest Height(from the fork face, mm) | H13 | 1215 | 1222 | 1215 |
| Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 | 4063/2843 |
| Wheel base(mm) | L4 | 1700 | 1700 | 1850 |
| Front Overhang(mm) | L2 | 460 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 | 533 |
| Overall Width(mm) | W1 | 1225 | 1225 | 1290 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2390 | 2390 | 2550 |
| Mast Tilt(deg) | a/b | 6/12 | 6/12 | 6/12 |
| Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 | 50×125×1220 |
| Performance | ||||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 | 18/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 17.5/13.4(CPC30) 19.5/15.5(CPCD30) | 18.1/13.4(CPC35) 19.6/16.2(CPCD35) | 18.1/13.4(CPC40) 19.6/16.2(CPCD40) |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 | 15/20 |
Features of Dogon Diesel Forklift Trucks
Reliable dedicated instrument
The instrument is integrated with the steering column, with a reasonable structure and better vision. The instrument integrates the water temperature gauge, oil level gauge, hour meter and other alarm devices, making it more convenient to monitor the truck status. When the engine fails, the indicator light will stay on.
New steering wheel adjustment mechanism
The patented new steering wheel double screw adjustment mechanism improves the comfort and reliability of operation. The ergonomic design makes driving more comfortable and convenient.
Excellent operating vision
The excellent mast ensures safe operation. The patented channel steel is of first-class quality. The enlarged channel steel surface makes the structure more solid. The wide-view mast is standard on the truck and provides a better view.
Environmentally friendly design, easy maintenance
High-pressure common rail environmentally friendly engine that meets the National IV standard. Built-in sound insulation and sealing materials effectively reduce vibration and noise. The 80° opening angle of the engine hood makes maintenance easier. The engine hood is easy to open. The air spring with automatic locking function ensures safety during maintenance. The truck has lower vibration and noise.
High Strength 20 MN Silicon Steel Door Frame
High Strength 20 MN Silicon Steel Door Frame has high tensile strength and sufficient toughness, good weldability and formability, and can be used for mold hydraulic forming.
Applications
The 4 wheel sit down fork lift trucks are frequently used in high-volume applications such as commercial warehousing and distribution centers.
- Loading or unloading heavy goods from vehicles
- Stacking or selecting stock on warehouse racks
- Moving very heavy loads around the facility
The sit down counterbalanced forklift delivers the comfort, durability, and maneuverability necessary to meet the ever-changing demands of your operation. In addition to small-tonnage forklifts, we also manufacture 10 ton forklift trucks.
If you are searching for suitable internal combustion counterbalance truck, electric forklifts, pallet stackers for your supermarket, retail store, warehouse, fulfillment center or industrial environment, Dogon offers low-cost, high-quality materials handling equipment to help you make the most of your business.
