Description

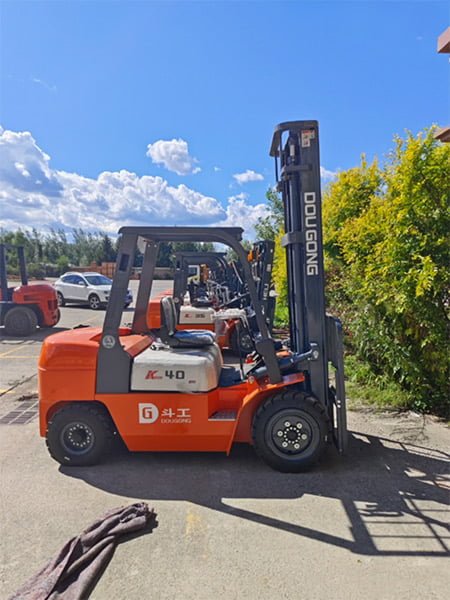

Dogon 4 ton diesel forklift for sale with Factory price and good performance. The standardization and versatility of forklift trucks make them widely used in mines, warehouses, stations, ports, airports, yards, distribution centers and logistics distribution centers, and even partially in ships, carriages and containers.
Except for 4 ton diesel lift truck, our factory also supplies 3ton-3.5ton forklift, 5 ton forklift, 10 ton forklift, articulating boom lift, scissor lift truck, electric warehouse forklift, electric pallet stacker for export.
4t Diesel Forklift Dimensions
Model | CPC40 | CPCD40 |
Power Type | Diesel | Diesel |
Rated Capacity(kg) | 4000 | 4000 |
Load Center(mm) | 500 | 500 |
Driving Mode | Sit-on Type | Sit-on Type |
Performance | ||
Max Traveling Speeds(laden/unladen) | 18/19 km/h | 19/19 km/h |
Lifting Speeds(laden/unladen) | 440/480 mm/s | 440/480 mm/s |
Lowering Speeds(laden/unladen) | 440/430 mm/s | 440/430 mm/s |
Max Draw-bar Pull(laden/unladen) | 18.1/13.4 kN | 19.6/16.2 kN |
Max Gradeability(laden/unladen) | 15%/20% | 15%/20% |
Size | ||
Max Lifting Height(mm) | 3000 | 3000 |
Mast Height, Lowered(mm) | 2150 | 2150 |
Mast Height, Extended(mm) | 4220 | 4220 |
Free Lift(mm) | 30 | 30 |
Overall Height(overhead guard, mm) | 3003 | 3003 |
Min. Ground Clearance(mm) | 148 | 148 |
Seat to Overhead Guard(mm) | 1000 | 1000 |
Traction Coupling Height(mm) | 323 | 323 |
Backrest Height(from the fork face, mm) | 1215 | 1215 |
Overall Length(with/without fork, mm) | 4063/2843 | 4063/2843 |
Wheel base(mm) | 1850 | 1850 |
Front Overhang(mm) | 460 | 460 |
Rear Overhang(mm) | 533 | 533 |
Overall Width(mm) | 1290 | 1290 |
Tread(front/rear)(mm) | 1000/970 | 1000/970 |
Distance Across Forks(max/min, mm) | 1060/244 | 1060/244 |
Min. Turning Radius(external, mm) | 2550 | 2550 |
Min. Right Angle Aisle Width(mm) | 2380 | 2380 |
Mast Tilt(deg) | 6/12 | 6/12 |
Fork Size(mm) | 50×125×1220 | 50×125×1220 |
Forklift Features
Hard-core configuration is more complete: the engine configuration is richer, matched with a variety of powerful engines, strong load-bearing capacity, suitable for high-strength working conditions, so you can manage as you wish.
Optimized design is more reliable: the braking system is upgraded comprehensively, effectively improving the reliability and comfort of braking. Increase the diameter of hydraulic pipeline, optimize the direction of pipeline joints, reduce the temperature of hydraulic oil, significantly increase the service life of hydraulic components, and reduce maintenance costs during the life cycle.
Energy-saving application is more efficient: the whole vehicle is equipped with LED lamps as standard, energy-saving and environmental protection, longer service life and higher reliability. Standard equipped with load sensing, priority to ensure steering, reduce energy loss, reduce the use of cost.
Refined and more superior: Optimized heat dissipation air ducts, while configured with enlarged aluminum plate fin radiator, cooling performance is greatly improved, thus improving the reliability of key components such as transmission and engine.
Humanized design is more comfortable: enlarged leather grain anti-slip on board handle, semi-wrapped lumbar seat, instrument backlight design, anti-slip metal pedal, hood lock and other humanized design, more comfortable to operate and use.
Integrated handle switch (hydraulic truck), standard with lifting cylinder under the cushion, operation and driving new experience.
Application
Forklift is an industrial handling vehicle, which refers to various wheeled handling vehicles for loading, unloading, stacking and short-distance transportation of palletized goods.
The diesel lift truck can be used in a variety of applications, such as Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.
