Description

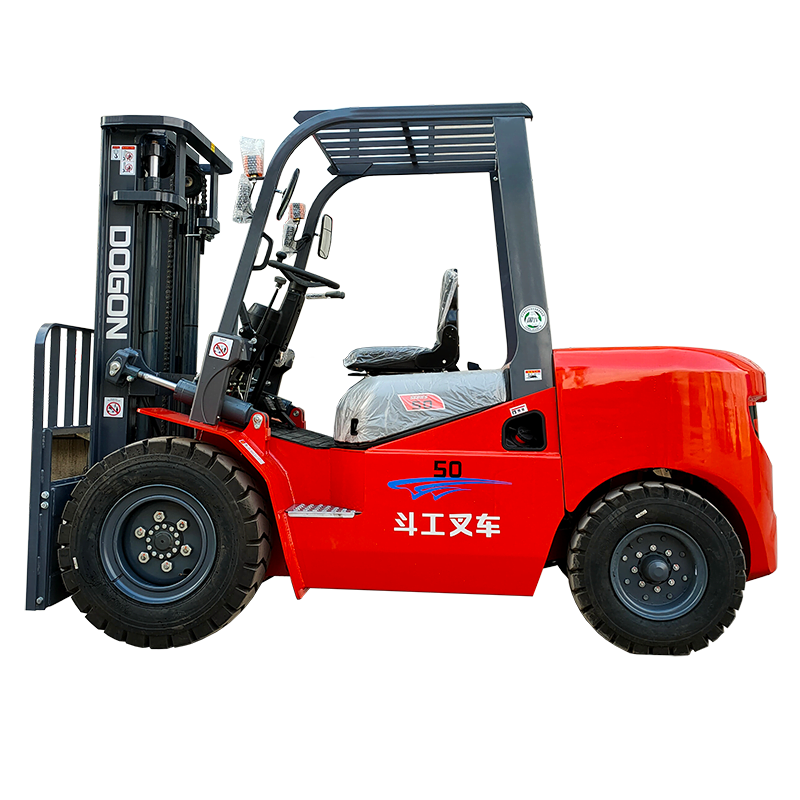

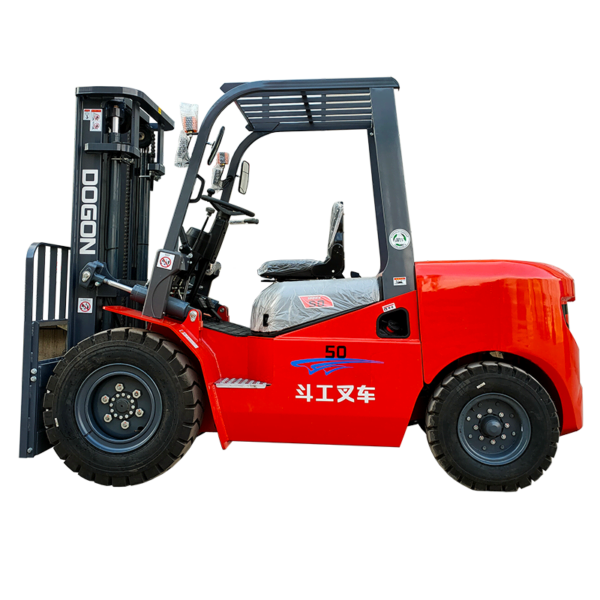

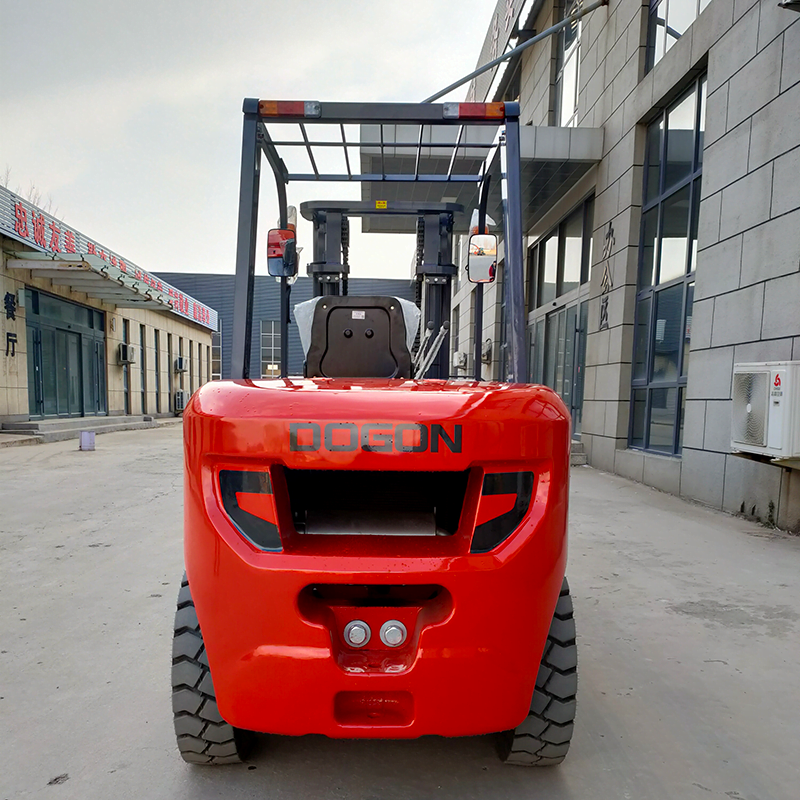

Dogon Group K2 series 5ton diesel forklift brand new listing. The diesel forklift CPC50 model is the cost-effective choice, equipped with Chinese or Japanese imported engines, with CE certification.
5 ton Diesel Forklift Specifications
Model | CPC50 | |
Power Type | Diesel | |
Rated Capacity | Kg | 5000 |
Load Center | mm | 500 |
Overall Length without Fork | mm | 3375 |
Overall Length with Fork | mm | 4590 |
Overall Width | mm | 1480 |
Overall Height(Overhead Guard) | mm | 2290 |
Self-weight no load | Kg | 7000 |
Lifting Height | mm | 3000 |
Min. Ground Clearance | mm | 140 |
Maximum lifting height of forks (with blocking shelf) | mm | 4300 |
Mast Height (fork lowered) | mm | 2190 |
Fork Size | mm | 1220X150×55 |
Mast Tilt (front/rear) | 6/12 | |
Wheel Base | mm | 2100 |
Tread (front/rear) | mm | 1180/1190 |
Front Overhang | mm | 570 |
Front Wheel | 300-15-20PR | |
Rear Wheel | 7.00-12-12PR | |
Mini. turning radius | mm | 3050 |
Min. right-angle stacking aisle width | mm | 4740 |
Min. right-angle aisle width | mm | 2800 |
Maximum travel speed (full load) | km/h | 19 |
Maximum lifting speed (full load) | mm/m | 400 |
Max. tractive effort (full load) | KN | 22 |
Maximum climbing capacity | % | 20 |
Battery voltage/capacity | V/Ah | (12/80)×2 |
Engine power rating | kw/r.p.m | 65/2400 |
Engine torque rating | Nm/r.p.m | 302/1440-1800 |
Number of engine cylinders | 4 | |
Engine bore X stroke | mm | 108×130 |
Engine Displacement | L | 4.76 |
Fuel tank capacity | L | 120 |
Engine operating pressure | Mpa | 20 |
Features of Dogon 5t forklift truck
-Great Reliability
-Simplified Serviceability
-Enhanced Productivity
-High-efficiency hydraulic system
-Lower fuel consumption
About Dogon Forklift
Dogon (China) Group is a dedicated forklift manufacturer and supplier in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. The K2 series internal combustion counterbalanced forklift trucks are our main product pipeline, such as 3 ton forklift, 5 ton forklift, 10 ton forklift.
In addition, Dogon has a wide range of material handling equipment, including diesel forklift, electric forklift, electric pallet stacker, pallet jack, scissor lift platform, telehandler truck and so on.
