Description

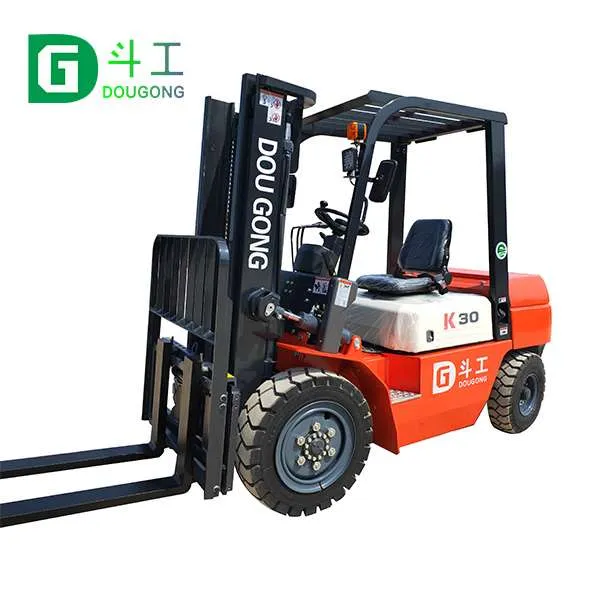

K series diesel forklift is our star product. The 4-wheel diesel fork lift truck 3-3.5 ton are designed mainly for external use with excellent performance.
Product Description
- High pressure common rail environmental protection engine.
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
Standard configuration
- Fork
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
Optional Configuration
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyres
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Customer make color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage)
- Wide view free-lift mast(three-stage)
4-wheel diesel fork lift truck dimensions
| Model | CPC30 | CPCD30 | CPC35 | CPCD35 | |
| Power Type | Diesel | Diesel | Diesel | Diesel | |
| Rated Capacity | (kg) | 3000 | 3000 | 3500 | 3500 |
| Load Center | (mm) | 500 | 500 | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type | Sit-on Type | Sit-on Type | |
| Performance | |||||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 | 18/19 | 18/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 17.5/13.4 | 19.5/15.5 | 18.1/13.4 | 19.6/16.2 |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 | 15/20 | 15/20 |
| Size | |||||
| Max Lifting Height(mm) | H | 3000 | 3000 | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2070 | 2070 | 2070 | 2070 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 2090 | 2090 | 2090 | 2090 |
| Min. Ground Clearance(mm) | H5 | 135 | 135 | 135 | 135 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 310 | 310 | 310 | 310 |
| Backrest Height(from the fork face, mm) | H13 | 1215 | 1215 | 1222 | 1222 |
| Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 | 3913/2693 | 3913/2693 |
| Wheel base(mm) | L4 | 1700 | 1700 | 1700 | 1700 |
| Front Overhang(mm) | L2 | 460 | 460 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 | 533 | 533 |
| Overall Width(mm) | W1 | 1225 | 1225 | 1225 | 1225 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2390 | 2390 | 2390 | 2390 |
| Mast Tilt(deg) | a/b | 6/12 | 6/12 | 6/12 | 6/12 |
| Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 | 1220×122×45 | 1220×122×45 |
Applications
This type of small forklift is used for loading and unloading cargoes, short distance transport, heavy lifting, usually using diesel or battery driven. Simple operation and fast driving. Widely used in railway station, port, airport, factory, warehouse, etc., is efficient equipment mechanical for loading and unloading, stacking and short distance transport.
3ton forklift and 3.5 ton forklift for sale are popular in the market. If you need a higher tonnage forklift, we can also provide 4 ton forklift, 5 ton forklift, and 10 ton forklift for sale. In addition, light-duty electric lift trucks are also available, such as 1 ton forklift to 3ton forklift.
Why choose Dogon forklift truck
* Free Quotes
* Fast delivery
* Advanced technology
* Available In-Stock
* Affordable Prices
* Have many years of production or foreign trade experience
* Participated in many well-known exhibitions in the industry
* Has its own R&D team
* Strict QC systems
* with ISO & CE certificate, quality guaranteed
* After-sale guarantee
* Provide OEM and personalized customization services
Dogon Fork Lift Truck Certificate
About Dogon Forklift
Dogon (China) Group is a dedicated forklift manufacturer in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. We can supply different classes of forklifts.
Now our products are diesel counterweight forklifts, electric counterweight forklifts, non-road diesel engines, scissor lift truck, articulating boom lift, telehandler forklift, grass grabbers, loaders, agricultural machinery, etc. The diesel lift truck and electric forklift trucks are very popular in the market. 3 ton electric forklift and 1 ton forklift are also our best seller.
Dogon fork lift trucks are very popular with its high performance, comfortable operation, excellent quality, and reliable working. All the forklift trucks can be supplied with necessary attachments for different material handling applications.
Dogon is always the preferred brand among quality-aware forklift truck drivers and owners. Choose Dogon forklift for perfect operational efficiency, low maintenance costs and long service life.
If you are interested in purchasing forklift trucks from China, get in touch with our professional team.
