Description

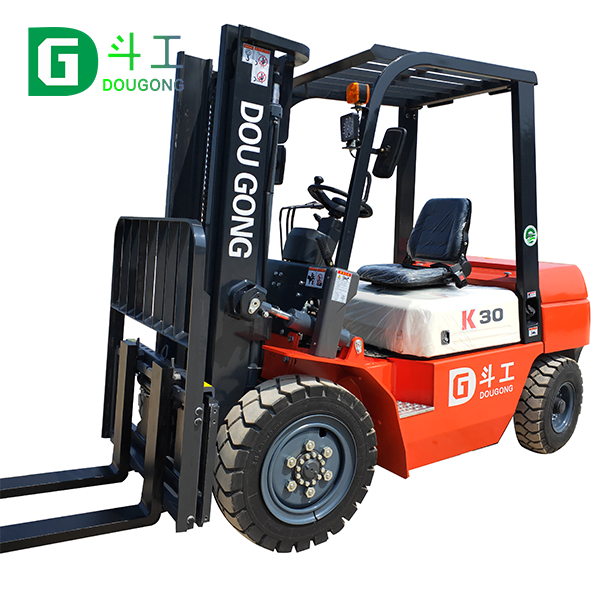

Dogon K series 3ton forklift diesel is an industrial material handling equipment with powerful engine and strong capacity. This type of forklift truck is perfect for various of business or job sites that need to carry heavy materials.
3ton Forklift Diesel Specs
Model | | CPC30 | CPCD30 |
Power Type | | Diesel | Diesel |
Rated Capacity | (kg) | 3000 | 3000 |
Load Center | (mm) | 500 | 500 |
Driving Mode | | Sit-on Type | Sit-on Type |
Performance |
Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 |
Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 |
Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 |
Max Draw-bar Pull(laden/unladen) | kN | 17.5/13.4 | 19.5/15.5 |
Max Gradeability(laden/unladen) | % | 15/20 | 15/20 |
Size |
Max Lifting Height(mm) | H | 3000 | 3000 |
Mast Height, Lowered(mm) | H1 | 2070 | 2070 |
Mast Height, Extended(mm) | H2 | 4220 | 4220 |
Free Lift(mm) | H3 | 30 | 30 |
Overall Height(overhead guard, mm) | H4 | 2090 | 2090 |
Min. Ground Clearance(mm) | H5 | 135 | 135 |
Seat to Overhead Guard(mm) | H6 | 1000 | 1000 |
Traction Coupling Height(mm) | H9 | 310 | 310 |
Backrest Height(from the fork face, mm) | H13 | 1215 | 1215 |
Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 |
Wheel base(mm) | L4 | 1700 | 1700 |
Front Overhang(mm) | L2 | 460 | 460 |
Rear Overhang(mm) | L3 | 533 | 533 |
Overall Width(mm) | W1 | 1225 | 1225 |
Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 |
Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 |
Min. Turning Radius(external, mm) | r | 2390 | 2390 |
Mast Tilt(deg) | a/b | 6/12 | 6/12 |
Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 |
Configuration
Standard configuration | Optional Configuration |
Fork | Driver’s cab |
Traction pin | Speedometer |
Backward buzzer | Fire extinguisher |
Neutral gear safety switch | Solid tyres |
Overhead guard rain cover | Rear working lamp |
Overhead guard | Auxiliary pipeline |
Air inletting device | Suspension seat |
Durable tread tyres | Customer make color |
Widen fork arm carrier | Transmission oil temperature gauge |
– | Warm air blower |
– | High air exhausting device |
– | Tilt cylinder jacket |
– | Smart fleet management system |
Product features
- High pressure common rail environmental protection engine.
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- 80 opening angle of engine hood makes maintenance easier.
- The engine hood is easy to open.
- The gas spring with automatic lock function ensures the safety during maintenance.
- The truck has lower vibration and noise.
Why choose Dogon Forklift
- Professional R&D team
- with ISO & CE certificate, quality guaranteed
- OEM, ODM and customization services
- Fast delivery
- Affordable Prices
- Have many years of production and export trade experience
- Participated in many well-known exhibitions in the industry
