Description

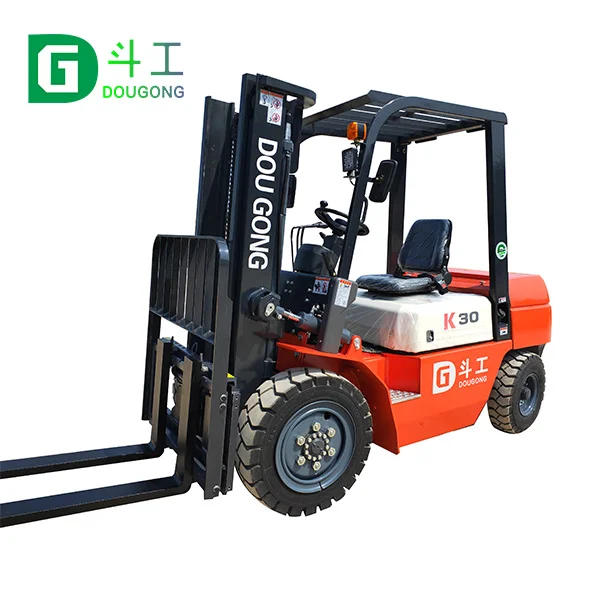

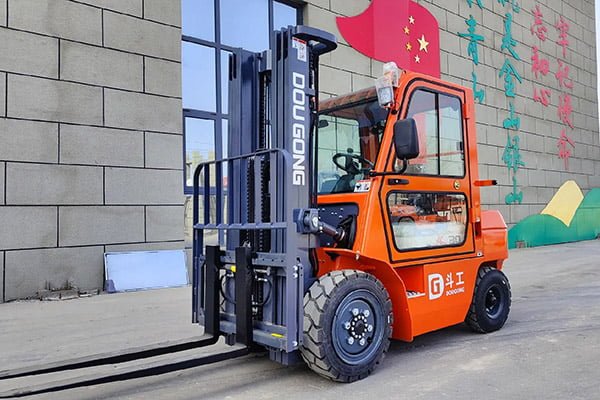

Diesel forklift is a common type of internal combustion counterbalanced trucks which are mainly used for cargo handling and transportation. The 3 ton diesel forklift is popular in the market because of its own lightness and flexibility. The CPC 30/CPCD 30 diesel forklift produced by Dogon is designed for high reliability and perfect performance. It uses the highest quality components to reduce maintenance costs and ensure operator comfort.
3 ton diesel forklift dimensions
| Model | CPC30 | CPCD30 | |
| Power Type | Diesel | Diesel | |
| Rated Capacity | (kg) | 3000 | 3000 |
| Load Center | (mm) | 500 | 500 |
| Driving Mode | Sit-on Type | Sit-on Type | |
| Performance | |||
| Max Traveling Speeds(laden/unladen) | km/h | 18/19 | 18/19 |
| Lifting Speeds(laden/unladen) | mm/s | 440/480 | 440/480 |
| Lowering Speeds(laden/unladen) | mm/s | 440/430 | 440/430 |
| Max Draw-bar Pull(laden/unladen) | kN | 17.5/13.4 | 19.5/15.5 |
| Max Gradeability(laden/unladen) | % | 15/20 | 15/20 |
| Size | |||
| Max Lifting Height(mm) | H | 3000 | 3000 |
| Mast Height, Lowered(mm) | H1 | 2070 | 2070 |
| Mast Height, Extended(mm) | H2 | 4220 | 4220 |
| Free Lift(mm) | H3 | 30 | 30 |
| Overall Height(overhead guard, mm) | H4 | 2090 | 2090 |
| Min. Ground Clearance(mm) | H5 | 135 | 135 |
| Seat to Overhead Guard(mm) | H6 | 1000 | 1000 |
| Traction Coupling Height(mm) | H9 | 310 | 310 |
| Backrest Height(from the fork face, mm) | H13 | 1215 | 1215 |
| Overall Length(with/without fork, mm) | W1 | 3913/2693 | 3913/2693 |
| Wheel base(mm) | L4 | 1700 | 1700 |
| Front Overhang(mm) | L2 | 460 | 460 |
| Rear Overhang(mm) | L3 | 533 | 533 |
| Overall Width(mm) | W1 | 1225 | 1225 |
| Tread(front/rear)(mm) | W3/W2 | 1000/970 | 1000/970 |
| Distance Across Forks(max/min, mm) | W5 | 1060/244 | 1060/244 |
| Min. Turning Radius(external, mm) | r | 2390 | 2390 |
| Mast Tilt(deg) | a/b | 6/12 | 6/12 |
| Fork Size(mm) | L4 | 1220×122×45 | 1220×122×45 |
Optional forklift diesel engines
Standard configuration
- Fork
- Traction pin
- Backward buzzer
- Neutral gear safety switch
- Overhead guard rain cover
- Overhead guard
- Air inletting device
- Durable tread tyres
- Widen fork arm carrier
Optional Configuration
- Driver’s cab
- Speedometer
- Fire extinguisher
- Solid tyre
- Rear working lamp
- Auxiliary pipeline
- Suspension seat
- Customer make color
- Transmission oil temperature gauge
- Warm air blower
- High air exhausting device
- Tilt cylinder jacket
- Smart fleet management system
Product features
- 20% reduction in vibration
- 3dB noise reduction
- 45% more workspace
- operator’s field of vision increased by 20%
- 20% increase in work efficiency
- Loading capacity increased by more than 5%
- Stability increased by 5%
- Reliability increased by 40%
- Opening angle of the hood increased to 80°
Available Attachment
- String rod
- Lifting hook
- Side shifter
- Paper roll clamp
- Rotating fork
- Cargo boom
- Lengthening fork
- Multipurpose drum clamp
- Rotating flat clamp
- Widen fork arm carrier
- Lengthening fork extension
- Load stabilizer
- Load push pull
- Tipping fork, tipping bucket
- Wide view free-lift mast(two-stage)
- Wide view free-lift mast(three-stage)

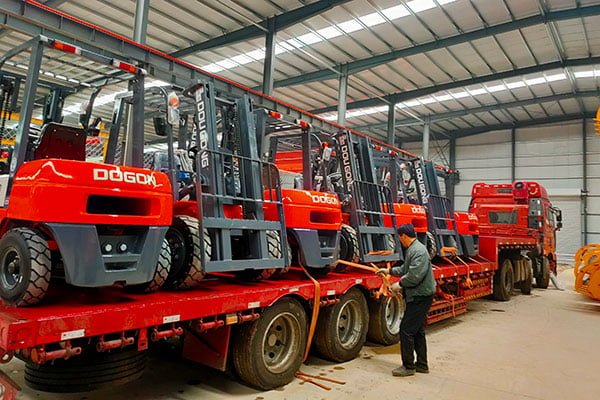

About Dogon Forklift
Dogon (China) Group is a dedicated forklift manufacturer and supplier in China. Our company has more than 500 employees, including more than 100 professional technicians, and more than 50 senior and intermediate engineers. The K series internal combustion counterbalanced forklift trucks are our main product pipeline.
Dogon diesel lift truck is very popular with its high performance, comfortable operation, excellent quality, high cost performance, and reliable working. Our company will continuously keep its advantages with strict QC systems. Our K series diesel 3 ton forklift, 3.5 ton forklift, 4t forklift are hot-sale in the market with ISO & CE certificates.
Now our company mainly produces counterbalance diesel forklifts, electric forklifts, non-road diesel engines, grass grabbers, loaders, agricultural machinery, etc. All the lift trucks can be supplied with necessary attachments for different material handling applications. For more detailed information, such as price list, product dimensions, payment and shipment, contact our professional sales team, get a free quotation right now.
